先楫HPM6750 Windows下VSCode开发环境配置

HPM6750 vscode调试

韬_17

1640人浏览 · 2024-09-14 23:02:11

韬_17 · 2024-09-14 23:02:11 发布

用的是EVKmini，ft2232作为调试器jtag接口调试
请添加图片描述

启动start_gui.exe
在这里插入图片描述

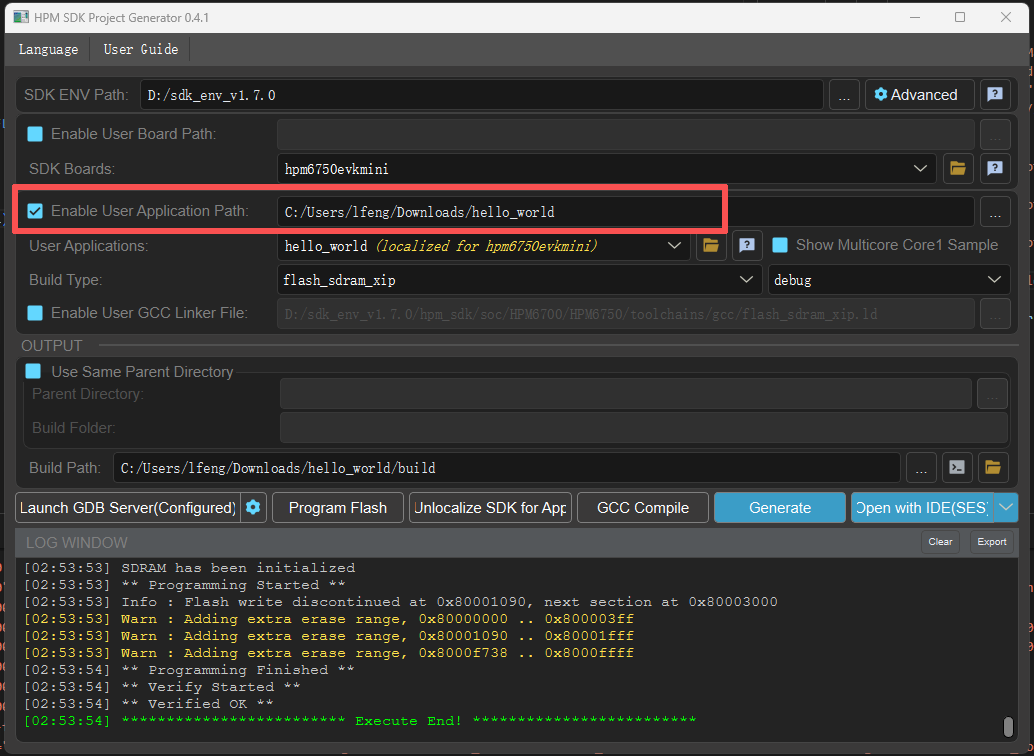

以hello_world为例，更改一下build path，可以generate并使用gcc compile，注意此处需要先gcc compile一次，不然直接在vscode里面build的烧不进去

也可以自己指定路径

最后会得到这些
在这里插入图片描述
点击start_gui里面的命令行，用命令行启动vscode

新建.vscode文件夹，建立两个文件

launch.json

{
    "version": "0.2.0",
    "configurations": [
        {
            "name": "HPM Debug",
            "cwd": "${workspaceRoot}",
            // "executable": "${command:cmake.launchTargetPath}",
            "executable": "${workspaceRoot}/build/output/demo.elf",
            "request": "launch",
            "type": "cortex-debug",
            "servertype": "openocd",
            // "searchDir": ["${env:OPENOCD_SCRIPTS}"],
            "searchDir": [],
            "device": "HPM6750",
            "configFiles": [
                "${workspaceRoot}/hpm_sdk_localized_for_hpm6750evkmini/boards/openocd/probes/ft2232.cfg",
                "${workspaceRoot}/hpm_sdk_localized_for_hpm6750evkmini/boards/openocd/soc/hpm6750-single-core.cfg",
                "${workspaceRoot}/hpm_sdk_localized_for_hpm6750evkmini/boards/openocd/boards/hpm6750evkmini.cfg"
            ],
            "armToolchainPath": "${env:GNURISCV_TOOLCHAIN_PATH}/bin",//工具链的路径
            "gdbPath": "${env:GNURISCV_TOOLCHAIN_PATH}/bin/riscv32-unknown-elf-gdb",//GDB的路径
            "interface": "jtag",
            "svdFile":"${workspaceRoot}/hpm_sdk_localized_for_hpm6750evkmini/soc/HPM6700/HPM6750/HPM6750_svd.xml",
            "showDevDebugOutput": "raw",
            "runToEntryPoint": "main",
            // Work around for stopping at main on restart
            "postRestartCommands": [
                "break main",
                "continue"
            ],
            "preLaunchTask":"Build and Download"
        }
    ]
}

settings.json

{
    "cmake.buildBeforeRun": true,
    // "C_Cpp.default.configurationProvider": "ms-vscode.cmake-tools",
    // "cortex-debug.openocdPath.windows": "C:/OpenOCD-20250710-0.12.0/bin/openocd.exe",
    "cortex-debug.openocdPath.windows": "D:/sdk_env_v1.7.0/tools/openocd/openocd.exe",
    "cortex-debug.gdbPath.windows": "${env:GNURISCV_TOOLCHAIN_PATH}/bin/riscv32-unknown-elf-gdb.exe",
    "cortex-debug.objdumpPath.windows": "${env:GNURISCV_TOOLCHAIN_PATH}/bin/riscv32-unknown-elf-objdump.exe",
    "cortex-debug.armToolchainPath.windows": "${env:GNURISCV_TOOLCHAIN_PATH}/bin",
    "cortex-debug.variableUseNaturalFormat": false,
    "cmake.configureSettings": {
        "BOARD":"hpm6750evkmini"
    },
    "cmake.defaultVariants": {
        "buildType": {
            "choices": {
                "flash_xip": {
                    "short": "flash_xip",
                    "long": "hpm flash xip",
                    "buildType": "flash_xip"
                }
            }
        }
    },
    "files.associations": {
        "stdio.h": "c",
        "hpm_debug_console.h": "c",
        "board.h": "c"
    }
}

tasks.json 确保每次debug时候都会烧一遍程序

{
    "version": "2.0.0",
    "tasks": [
        {
            "type": "cmake",
            "label": "CMake: build",
            "command": "build",
            "targets": [
                "all"
            ],
            "group": "build",
            "problemMatcher": [],
            "detail": "CMake template build task"
        },
        {
            "dependsOn":"CMake: build",
            "label": "Build and Download",
            "type": "shell",
            "command": "D:/sdk_env_v1.7.0/tools/openocd/openocd.exe",
            "args": [
            "-f",
            "${workspaceRoot}/hpm_sdk_localized_for_hpm6750evkmini/boards/openocd/probes/ft2232.cfg",
            "-f",
            "${workspaceRoot}/hpm_sdk_localized_for_hpm6750evkmini/boards/openocd/soc/hpm6750-single-core.cfg",
            "-f",
            "${workspaceRoot}/hpm_sdk_localized_for_hpm6750evkmini/boards/openocd/boards/hpm6750evkmini.cfg",
            "-c",
            "program ./build/output/demo.elf verify; reset_soc; exit "
            ],
            "problemMatcher": []
        }
    ]
}
