这个说白了就是拉取到上线文件之后，直接通过执行rsync命令，来实现发布到对应的服务器

客户端macOS系统提交代码到===GitServe 10.211.55.3 /home/git/repos/app.git

关于这个的配置可以参考这里

Centos7下搭建简单的git服务器https://www.toutiao.com/i6882653528150508044/

开始构建项目

新建—输入项目名称php-deploy，选择构建自由风格的软件项目—下一步

Gernal配置，丢弃旧的构建，防止jenkins构建较多之后变臃肿

配置好源码管理之后可以直接先保存构建一次

下面这个能跑通的前提是用户已经打通Credentials

手动在Jenkins主机上切换到Jenkins用户，执行git命令拉取代码

sudo su -s /bin/bash jenkins

git clone git@10.211.55.3:/home/git/repos/app.git

我这里通过rpm安装的Jenkins 所以将

/var/lib/jenkins/.ssh/id_rsa.pub追加到/home/git/.ssh/authorized_keys里面

一般就OK了

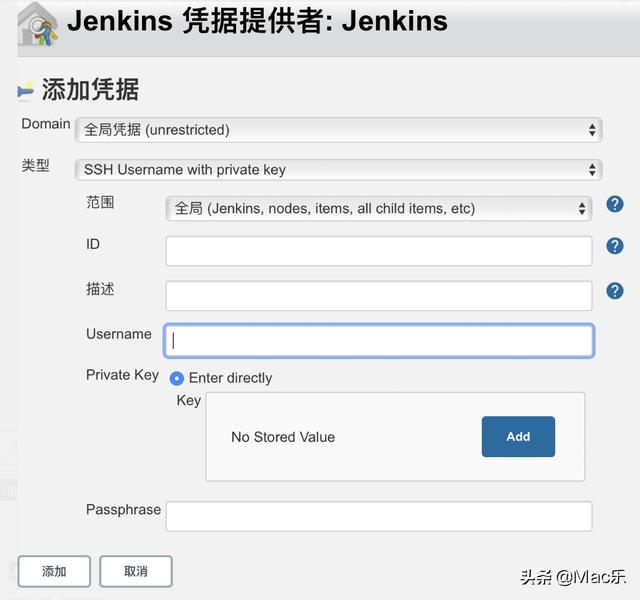

关于凭据这里配置了Jenkins用户

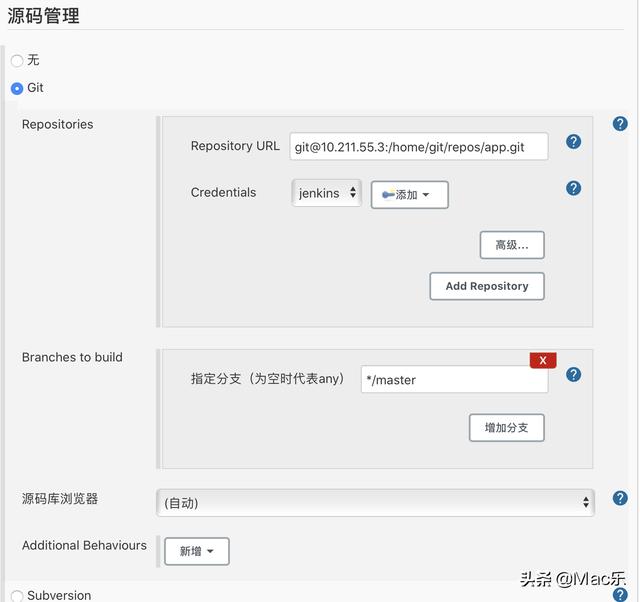

只有上面条件OK之后，下面源码管理这里才不会出错

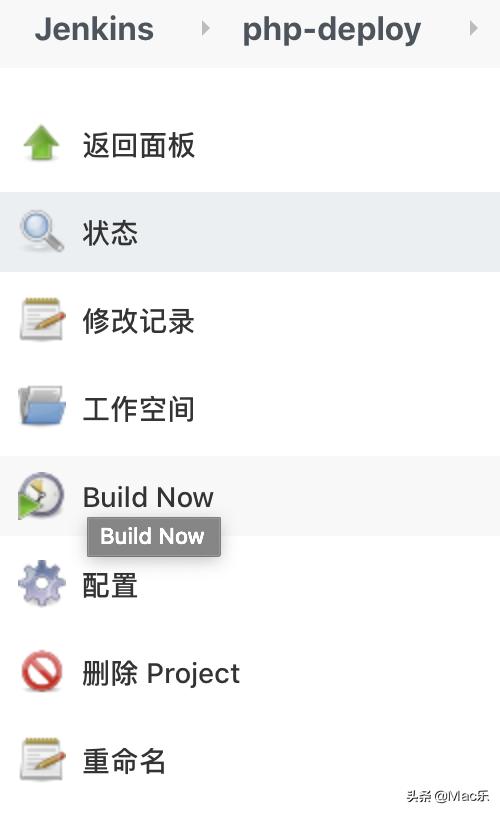

然后直接构建

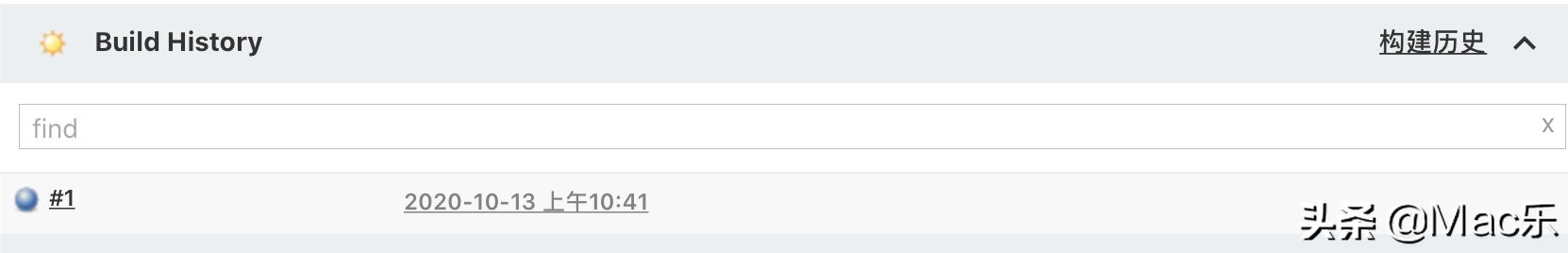

然后点击最左侧的图标：

查看控制台输出：

Started by user adminRunning as SYSTEMBuilding in workspace /var/lib/jenkins/workspace/php-deployThe recommended git tool is: NONEusing credential 73d0c28a-8320-4393-86eb-2b60472899a1Cloning the remote Git repositoryCloning repository git@10.211.55.3:/home/git/repos/app.git > /usr/bin/git init /var/lib/jenkins/workspace/php-deploy # timeout=10Fetching upstream changes from git@10.211.55.3:/home/git/repos/app.git > /usr/bin/git --version # timeout=10 > git --version # 'git version 1.8.3.1'using GIT_SSH to set credentials  > /usr/bin/git fetch --tags --progress git@10.211.55.3:/home/git/repos/app.git +refs/heads/*:refs/remotes/origin/* # timeout=10 > /usr/bin/git config remote.origin.url git@10.211.55.3:/home/git/repos/app.git # timeout=10 > /usr/bin/git config --add remote.origin.fetch +refs/heads/*:refs/remotes/origin/* # timeout=10Avoid second fetch > /usr/bin/git rev-parse refs/remotes/origin/master^{commit} # timeout=10Checking out Revision 8d2821c2b9e4ac77d758ba2ca6ad87bc9a7e709a (refs/remotes/origin/master) > /usr/bin/git config core.sparsecheckout # timeout=10 > /usr/bin/git checkout -f 8d2821c2b9e4ac77d758ba2ca6ad87bc9a7e709a # timeout=10Commit message: "add php file"First time build. Skipping changelog.[php-deploy] $ /bin/sh -xe /tmp/jenkins6495258260213274036.shFinished: SUCCESS

到现在为止，说明数据的拉取是正常的。都可以到对应的目录里边来查看。

# pwd

/var/lib/jenkins/workspace/php-deploy

# ls

index2.html index3.html index.html phpinfo.php

下一步的操作就是将拉渠道的代码推送到对应的PHP服务器的对应目录/home/www

命令简单说明：因为这个是在root下执行的，所以需要配置root用户的免密登陆

将Jenkins 的root用户的id_rsa.pub放到

cat /root/.ssh/id_rsa.pub >> /home/www/.ssh/authorized_keys

源目录删除的文件，目标文件也要删除，加--delete参数 --delete                delete extraneous files from destination dirs--progress              show progress during transferrsync -raz --delete --progress * www@10.211.55.3:/home/www

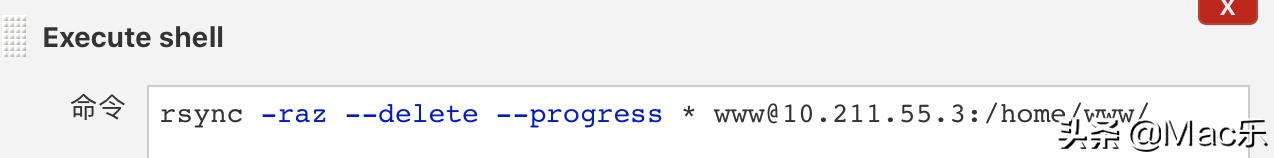

配置中如下填写

再次构建,控制台输出

Started by user adminRunning as SYSTEMBuilding in workspace /var/lib/jenkins/workspace/php-deployThe recommended git tool is: NONEusing credential 73d0c28a-8320-4393-86eb-2b60472899a1 > /usr/bin/git rev-parse --is-inside-work-tree # timeout=10Fetching changes from the remote Git repository > /usr/bin/git config remote.origin.url git@10.211.55.3:/home/git/repos/app.git # timeout=10Fetching upstream changes from git@10.211.55.3:/home/git/repos/app.git > /usr/bin/git --version # timeout=10 > git --version # 'git version 1.8.3.1'using GIT_SSH to set credentials  > /usr/bin/git fetch --tags --progress git@10.211.55.3:/home/git/repos/app.git +refs/heads/*:refs/remotes/origin/* # timeout=10 > /usr/bin/git rev-parse refs/remotes/origin/master^{commit} # timeout=10Checking out Revision 8d2821c2b9e4ac77d758ba2ca6ad87bc9a7e709a (refs/remotes/origin/master) > /usr/bin/git config core.sparsecheckout # timeout=10 > /usr/bin/git checkout -f 8d2821c2b9e4ac77d758ba2ca6ad87bc9a7e709a # timeout=10Commit message: "add php file" > /usr/bin/git rev-list --no-walk 8d2821c2b9e4ac77d758ba2ca6ad87bc9a7e709a # timeout=10[php-deploy] $ /bin/sh -xe /tmp/jenkins5178794915886016847.sh+ rsync -raz --delete --progress index2.html index3.html index.html phpinfo.php www@10.211.55.3:/home/www/  ___                 ___   (o o)               (o o) (  V  ) ALex CentOS (  V  )--m-m-----------------m-m--sending incremental file listFinished: SUCCESS

登录到PHP服务器，可以看到文件已经存在了

$ pwd/home/www$ lsindex2.html  index3.html  index.html  phpinfo.php
