Tailscale异地组网中转derp服务器搭建(无需域名)
Tailscale异地组网中转derp服务器搭建
·
准备一台nat服务器

#安装带有docker环境的系统

登录服务器
部署derp容器
docker run -d --restart always --name derper -p 4433:443 -p 3478:3478/udp pvapor/derper

添加端口转发

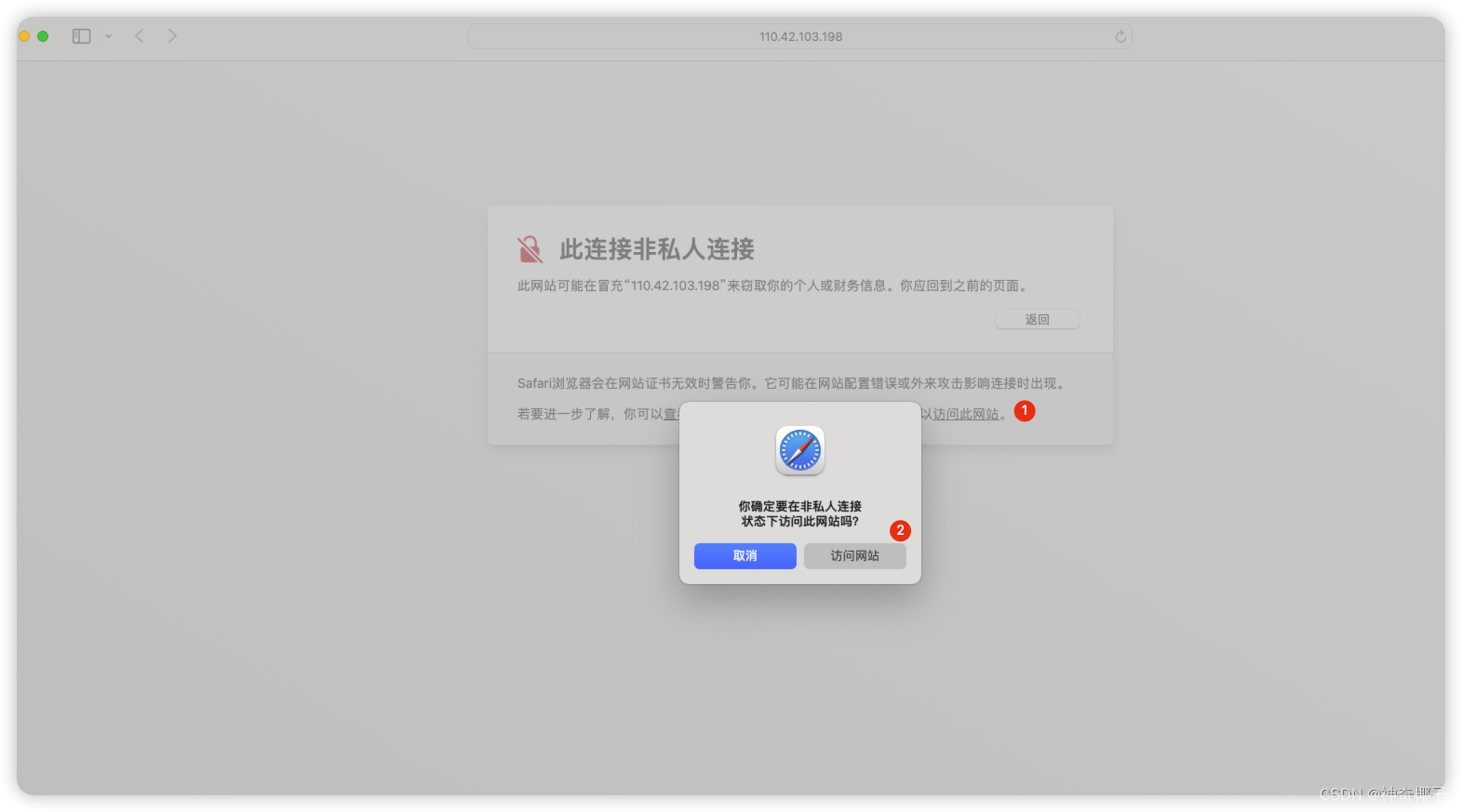

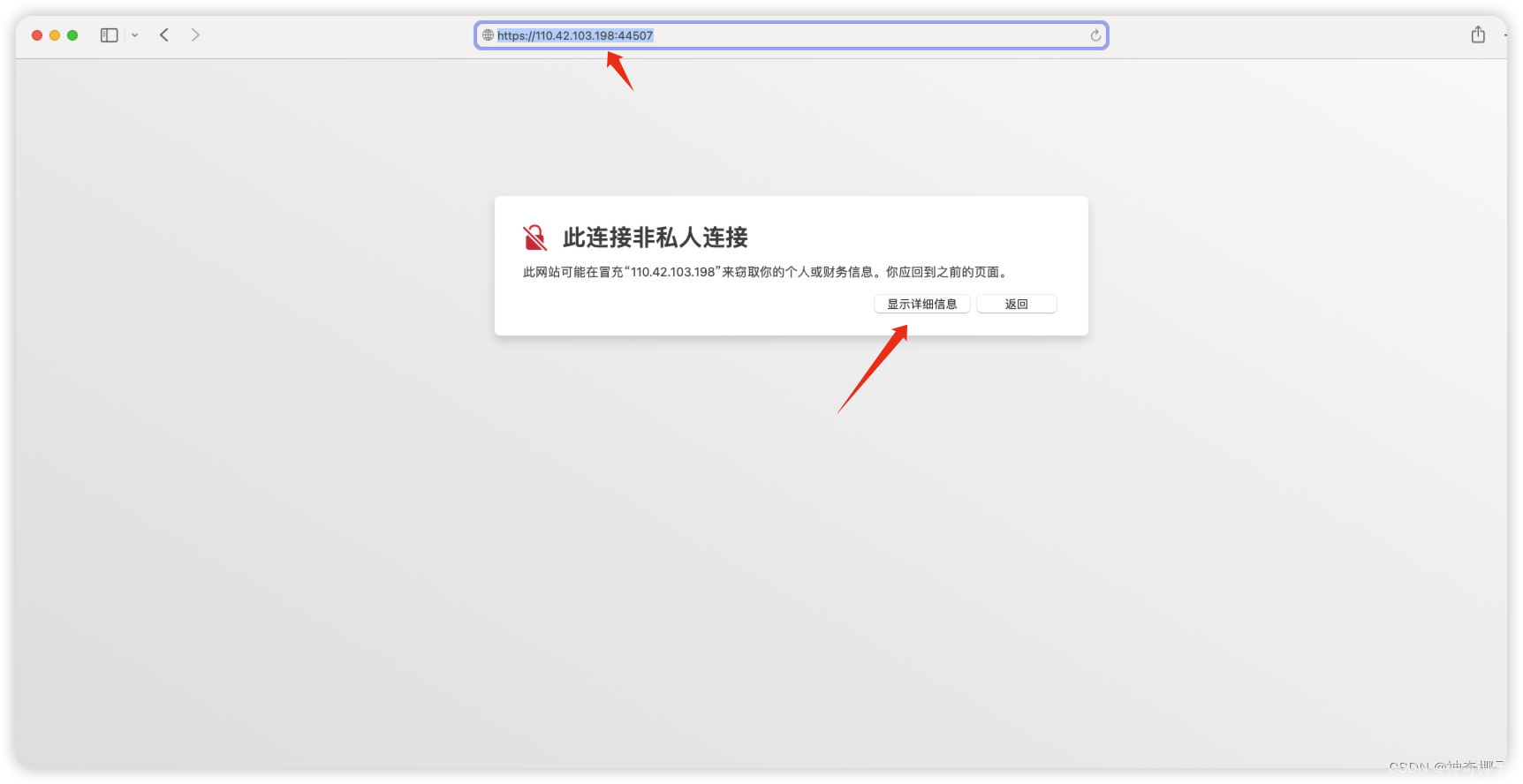

测试访问derp服务器
> https://110.42.103.198:44507 访问成功

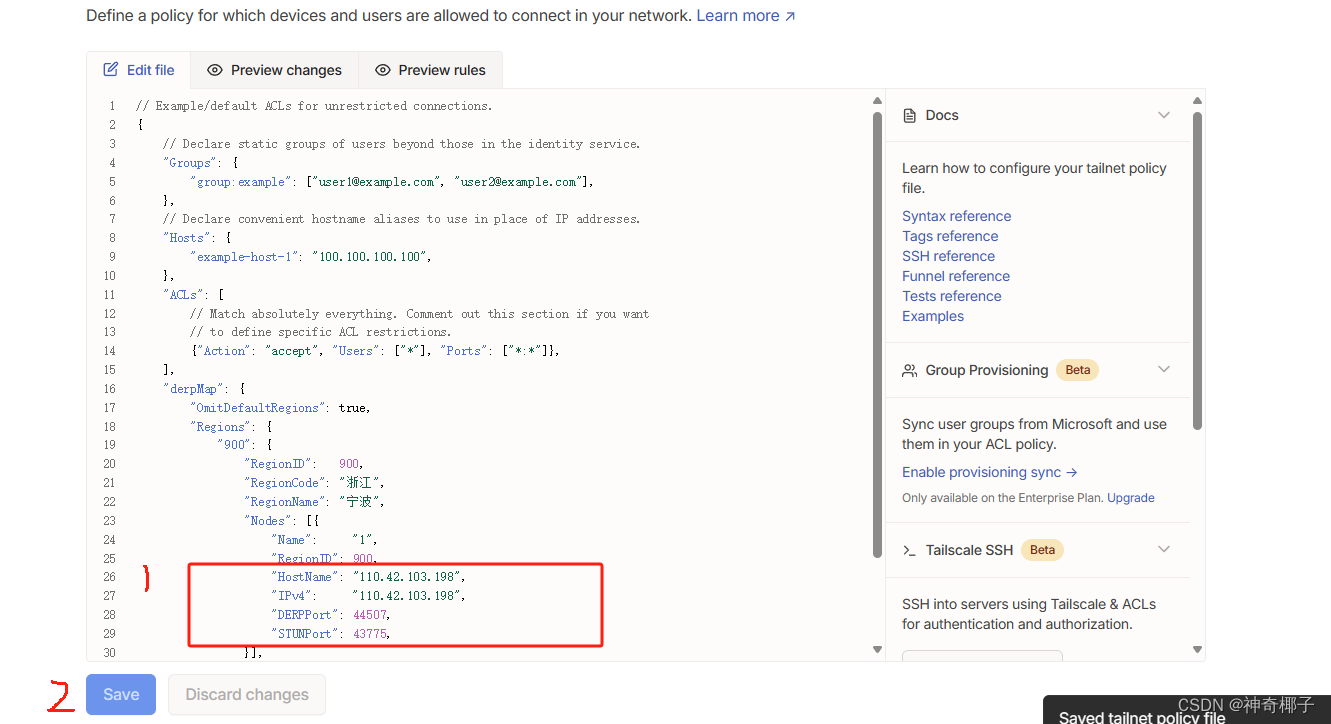

修改tailscale配置文件
// Example/default ACLs for unrestricted connections.
{
// Declare static groups of users beyond those in the identity service.
"Groups": {
"group:example": ["user1@example.com", "user2@example.com"],
},
// Declare convenient hostname aliases to use in place of IP addresses.
"Hosts": {
"example-host-1": "100.100.100.100",
},
"ACLs": [
// Match absolutely everything. Comment out this section if you want
// to define specific ACL restrictions.
{"Action": "accept", "Users": ["*"], "Ports": ["*:*"]},
],
"derpMap": {
"OmitDefaultRegions": true,
"Regions": {
"900": {
"RegionID": 900,
"RegionCode": "浙江",
"RegionName": "宁波",
"Nodes": [{
"Name": "1",
"RegionID": 900,
"HostName": "服务器的ip",
"IPv4": "服务器的ip",
"DERPPort": 4433对应的网端口,
"STUNPort": 3478对应的外网端口,
}],
},
},
},
}

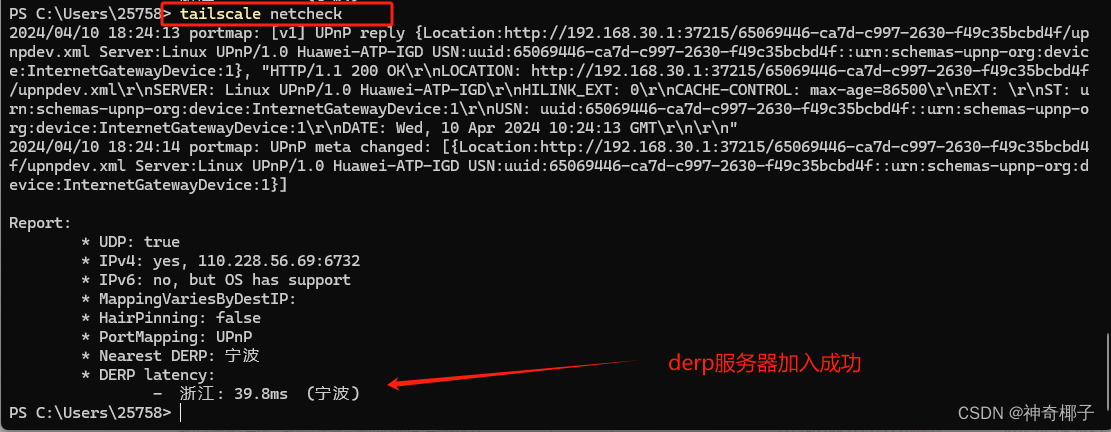

保存配置文件通过 `tailscale netcheck`命令进行查看
