Redis Operator 在 Kubernetes 中的部署与运维全指南

Redis Operator是Kubernetes生态中用于自动化管理Redis集群的工具，采用Operator模式实现复杂有状态应用的部署和运维。本文介绍了Redis Operator的核心功能，包括支持单机和集群模式部署、内置监控、动态存储分配等。通过Helm快速安装Operator后，可以便捷部署单节点Redis实例，或通过YAML文件自定义配置。Redis Operator简化了Redis

空梦境

957人浏览 · 2025-08-05 11:45:06

空梦境 · 2025-08-05 11:45:06 发布

一、Operator概述

1.1 为什么选择Operator模式来部署Redis集群

在 Kubernetes 生态中，Operator 模式通过引入自定义资源 (CRD) 和自定义控制器，将特定应用的运维知识编码到软件中，从而实现复杂有状态应用的自动化管理。相较于 Helm Chart（通常侧重于应用的初始部署和配置），Operator 提供了更深层次的生命周期管理能力，包括自动扩缩容、版本升级、故障恢复、备份等。

对于 Redis Cluster 这样的分布式有状态服务，Operator 能够：

简化部署与管理: 通过一个简单的 YAML (Custom Resource) 即可定义和部署整个集群。
自动化运维: Operator 会持续监控集群状态，自动处理节点故障、数据同步等问题。
高可用性: 确保 Redis 服务在节点故障时能自动切换和恢复，保障业务连续性。
声明式配置: 您只需声明期望的状态，Operator 负责将其变为现实。

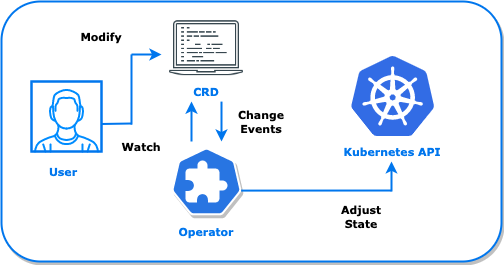

Operator模式架构图

在这里插入图片描述

1.2 Redis Operator概述

本次使用的是Opstree公司开发的 Redis Operator 。这是一款用 Golang 编写的 Redis 运维控制器（Operator），用于在 Kubernetes 上部署和管理 Redis 的 单机模式 和 集群模式，支持云端部署和裸机部署。它能根据最佳实践创建 Redis 集群，同时内置了 Redis Exporter，实现了对 Redis 的监控能力。

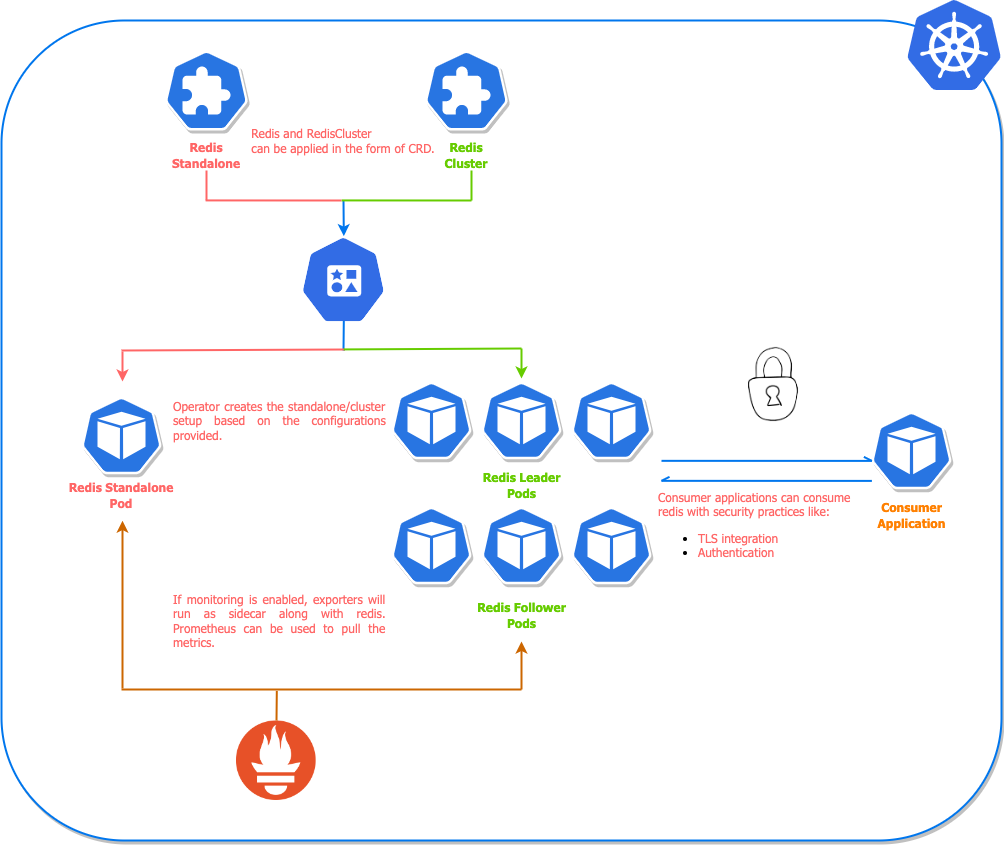

架构图如下

在这里插入图片描述

该 Redis Operator 支持以下功能：

✅ 支持 Redis 的集群模式和单节点模式部署
✅ 内置 Prometheus 监控导出器（redis-exporter）
✅ 动态存储资源分配（基于 PVC 模板）
✅ 资源请求与限制设置（CPU、内存等）
✅ 支持设置密码或无密码的 Redis 实例
✅ 支持节点调度策略（nodeSelector）与亲和性（affinity）配置
✅ 支持设置优先级类（Priority Class）以控制 Pod 优先级
✅ 支持使用 SecurityContext 配置内核参数和权限管理

二、部署Redis Operator

# 添加 Opstree Helm 仓库
helm repo add ot-helm https://ot-container-kit.github.io/helm-charts/

# 更新本地 Helm 仓库索引
helm repo update

# 安装 Redis Operator 到 'ot-operator' 命名空间 (如果不存在则创建)
$ helm install redis-operator ot-helm/redis-operator -n ot-operator --create-namespace
NAME: redis-operator01
LAST DEPLOYED: Tue Jul 22 11:47:11 2025
NAMESPACE: redis-operator
STATUS: deployed
REVISION: 1
TEST SUITE: None
...

安装完成后，验证 Operator Pod 是否正常运行：

root@k8s-master01:~# kubectl get pod -n ot-operator
NAME                                  READY   STATUS    RESTARTS   AGE
pod/redis-operator-57f979468d-qkn8p   1/1     Running   0          43s

三、使用

mysql Operator可以创建下列四种资源

Redis
Redis Cluster
Redis Replication
Redis Sentinel

3.1 单节点Redis

Redis 单节点是一个基于单进程的 Redis Pod

在这里插入图片描述

3.1.1 单节点Redis部署

使用helm安装

$  helm install redis ot-helm/redis --namespace redis-server --create-namespace
NAME: redis
LAST DEPLOYED: Tue Jul 22 14:36:22 2025
NAMESPACE: redis-server
STATUS: deployed
REVISION: 1
TEST SUITE: None

通过 kubectl 命令行验证独立 redis 设置。

root@k8s-master01:~/redis# kubectl get all -n redis-server
NAME          READY   STATUS    RESTARTS   AGE
pod/redis-0   1/1     Running   0          6s

NAME                       TYPE        CLUSTER-IP     EXTERNAL-IP   PORT(S)    AGE
service/redis              ClusterIP   10.244.22.26   <none>        6379/TCP   6s
service/redis-additional   ClusterIP   10.244.9.163   <none>        6379/TCP   6s
service/redis-headless     ClusterIP   None           <none>        6379/TCP   6s

NAME                     READY   AGE
statefulset.apps/redis   1/1     6s

YAML安装如下

编辑配置文件 standalone.yaml
root@k8s-master01:~/redis# cat standalone.yaml
---
apiVersion: redis.redis.opstreelabs.in/v1beta2
kind: Redis
metadata:
  name: redis-standalone
spec:
  kubernetesConfig:
    image: quay.io/opstree/redis:v7.0.15
    imagePullPolicy: IfNotPresent
  storage:
    volumeClaimTemplate:
      spec:
        # storageClassName: standard
        accessModes: ["ReadWriteOnce"]
        resources:
          requests:
            storage: 1Gi
        storageClassName: nfs-client
  securityContext:
    runAsUser: 1000
    fsGroup: 1000

部署

 kubectl apply -f standalone.yaml

查看部署详情

root@k8s-master01:~/redis# kubectl get all -n redis-server
NAME          READY   STATUS    RESTARTS   AGE
pod/redis-0   1/1     Running   0          6s

NAME                       TYPE        CLUSTER-IP     EXTERNAL-IP   PORT(S)    AGE
service/redis              ClusterIP   10.244.22.26   <none>        6379/TCP   6s
service/redis-additional   ClusterIP   10.244.9.163   <none>        6379/TCP   6s
service/redis-headless     ClusterIP   None           <none>        6379/TCP   6s

NAME                     READY   AGE
statefulset.apps/redis   1/1     6s

3.1.2 配置参数清单

Redis的Helm配置清单如下

Key	Type	Default	Description
TLS.ca	string	`"ca.key"`
TLS.cert	string	`"tls.crt"`
TLS.key	string	`"tls.key"`
TLS.secret.secretName	string	`""`
acl.secret.secretName	string	`""`
affinity	object	`{}`
env	list	`[]`
externalConfig.data	string	`"tcp-keepalive 400\nslowlog-max-len 158\nstream-node-max-bytes 2048\n"`
externalConfig.enabled	bool	`false`
externalService.enabled	bool	`false`
externalService.port	int	`6379`
externalService.serviceType	string	`"NodePort"`
initContainer.args	list	`[]`
initContainer.command	list	`[]`
initContainer.enabled	bool	`false`
initContainer.env	list	`[]`
initContainer.image	string	`""`
initContainer.imagePullPolicy	string	`"IfNotPresent"`
initContainer.resources	object	`{}`
labels	object	`{}`
nodeSelector	object	`{}`
podSecurityContext.fsGroup	int	`1000`
podSecurityContext.runAsUser	int	`1000`
priorityClassName	string	`""`
redisExporter.enabled	bool	`false`
redisExporter.env	list	`[]`
redisExporter.image	string	`"quay.io/opstree/redis-exporter"`
redisExporter.imagePullPolicy	string	`"IfNotPresent"`
redisExporter.resources	object	`{}`
redisExporter.tag	string	`"v1.44.0"`
redisStandalone.ignoreAnnotations	list	`[]`
redisStandalone.image	string	`"quay.io/opstree/redis"`
redisStandalone.imagePullPolicy	string	`"IfNotPresent"`
redisStandalone.imagePullSecrets	list	`[]`
redisStandalone.minReadySeconds	int	`0`
redisStandalone.name	string	`""`
redisStandalone.recreateStatefulSetOnUpdateInvalid	bool	`false`	`statefulset`的某些字段是不可变的，例如volumeClaimTemplates。当设置为true时，Operator将删除statefulset并重新创建。默认值为false。
redisStandalone.redisSecret.secretKey	string	`""`
redisStandalone.redisSecret.secretName	string	`""`
redisStandalone.resources	object	`{}`
redisStandalone.serviceType	string	`"ClusterIP"`
redisStandalone.tag	string	`"v7.0.15"`
securityContext	object	`{}`
serviceAccountName	string	`""`
serviceMonitor.enabled	bool	`false`
serviceMonitor.interval	string	`"30s"`
serviceMonitor.namespace	string	`"monitoring"`
serviceMonitor.scrapeTimeout	string	`"10s"`
sidecars.env	list	`[]`
sidecars.image	string	`""`
sidecars.imagePullPolicy	string	`"IfNotPresent"`
sidecars.name	string	`""`
sidecars.resources.limits.cpu	string	`"100m"`
sidecars.resources.limits.memory	string	`"128Mi"`
sidecars.resources.requests.cpu	string	`"50m"`
sidecars.resources.requests.memory	string	`"64Mi"`
storageSpec.volumeClaimTemplate.spec.accessModes[0]	string	`"ReadWriteOnce"`
storageSpec.volumeClaimTemplate.spec.resources.requests.storage	string	`"1Gi"`
tolerations	list	`[]`

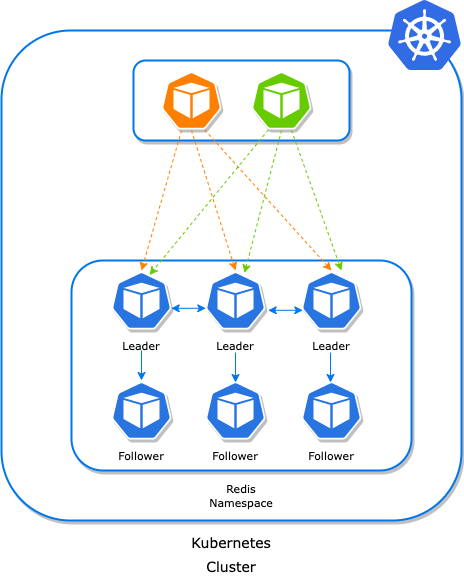

3.2 Redis Cluster

Redis 集群本质上是一种数据分片策略，它会自动将数据分布到多个 Redis 节点上。这是 Redis 的一项高级功能，能够实现分布式存储并避免单点故障。

当任何一个 Redis 节点发生故障时，从节点（follower pod）会自动晋升为主节点（leader）；而当原故障节点恢复在线后，它会重新以从节点的身份运行。

若构建仅包含主节点的 Redis 分片集群，至少需要 3 个节点。
若同时包含从节点，则至少需要 6 个 Redis Pod / 进程（通常为 3 主 3 从的配置）。

在这里插入图片描述

3.2.1 Redis Cluster部署

使用Helm安装

$ helm install redis-cluster ot-helm/redis-cluster \
  --set redisCluster.clusterSize=3 --namespace ot-operators
...
Release "redis-cluster" does not exist. Installing it now.
NAME:          redis-cluster
LAST DEPLOYED: Sun May  2 16:11:38 2021
NAMESPACE:     ot-operators
STATUS:        deployed
REVISION:      1
TEST SUITE:    None

验证安装Pod详情

oot@k8s-master01:~/redis# kubectl get pod -n redis-server
NAME                       READY   STATUS    RESTARTS   AGE
redis-cluster-follower-0   1/1     Running   0          37s
redis-cluster-follower-1   1/1     Running   0          34s
redis-cluster-follower-2   1/1     Running   0          31s
redis-cluster-leader-0     1/1     Running   0          82s
redis-cluster-leader-1     1/1     Running   0          61s
redis-cluster-leader-2     1/1     Running   0          58s

通过redis-cli查看集群状态

oot@k8s-master01:~/redis# kubectl exec -it redis-cluster-leader-0 -n redis-server -- redis-cli -a Opstree@1234 cluster nodes
Warning: Using a password with '-a' or '-u' option on the command line interface may not be safe.
AUTH failed: ERR AUTH <password> called without any password configured for the default user. Are you sure your configuration is correct?
6e7492c5979f60305003a159e6dbcdfec0a74926 10.244.96.156:6379@16379,redis-cluster-follower-0 slave e988ec0596613ded3f6ac8f241851596f4414814 0 1753167523762 1 connected
e988ec0596613ded3f6ac8f241851596f4414814 10.244.96.155:6379@16379,redis-cluster-leader-0 myself,master - 0 1753167524000 1 connected 0-5460
b9dc458eafb1a8e7aff36df09ebad220d3ca528d 10.244.95.218:6379@16379,redis-cluster-follower-1 slave 0b4d5d5b62e5d3cbb4dcf5d668844b5c7d657682 0 1753167524767 2 connected
ae32c2492600c36453725c2e5ce2d5d24e99f68a 10.244.66.37:6379@16379,redis-cluster-follower-2 slave 1d1e17f99792b1e6087540dd0de433ad385b4aa5 0 1753167523000 3 connected
1d1e17f99792b1e6087540dd0de433ad385b4aa5 10.244.66.36:6379@16379,redis-cluster-leader-2 master - 0 1753167523000 3 connected 10923-16383
0b4d5d5b62e5d3cbb4dcf5d668844b5c7d657682 10.244.95.205:6379@16379,redis-cluster-leader-1 master - 0 1753167524566 2 connected 5461-10922

检查service状态

root@k8s-master01:~/redis# kubectl get svc -n redis-server
NAME                                TYPE        CLUSTER-IP      EXTERNAL-IP   PORT(S)    AGE
redis-cluster-follower              ClusterIP   10.244.49.246   <none>        6379/TCP   81m
redis-cluster-follower-additional   ClusterIP   10.244.2.131    <none>        6379/TCP   81m
redis-cluster-follower-headless     ClusterIP   None            <none>        6379/TCP   81m
redis-cluster-leader                ClusterIP   10.244.37.225   <none>        6379/TCP   82m
redis-cluster-leader-additional     ClusterIP   10.244.22.8     <none>        6379/TCP   82m
redis-cluster-leader-headless       ClusterIP   None            <none>        6379/TCP   82m
redis-cluster-master                ClusterIP   10.244.38.178   <none>        6379/TCP   82m

关键 Service：

my-redis-cluster-leader: 主要的连接入口，指向当前的 leader/master 节点。客户端应连接此 Service。
my-redis-cluster-follower: 指向 follower/slave 节点，用于读密集型场景（需要客户端配置）。

3.2.2 配置Redis访问凭证

上面可以看到密码是Helm自动配置的默认密码，那么怎么修改密码呢

1）首先创建一个secret

# redis-secret.yaml
---
apiVersion: v1
kind: Secret
metadata:
  name: redis-secret # 此名称将在 RedisCluster CR 中引用
  namespace: redis-server # 建议为 Redis 集群创建一个专用命名空间
data:
  password: UEBzc3cwcmQ= # "P@ssw0rd" 的 Base64 编码
type: Opaque

2）将redis cluster的values get下来

$ helm get values -n redis-server redis-cluster --all >> values.yaml

3）修改values.yaml文件

$ vim values.yaml
redisCluster:
  redisSecret:
    secretKey: "password"        # secret的key名
    secretName: "redis-secret"   # 刚刚创建的secret名称

4）更新helm

root@k8s-master01:~/redis# helm upgrade -n redis-server redis-cluster ot-helm/redis-cluster -f values.yaml
Release "redis-cluster" has been upgraded. Happy Helming!
NAME: redis-cluster
LAST DEPLOYED: Tue Jul 22 15:11:40 2025
NAMESPACE: redis-server
STATUS: deployed
REVISION: 2
TEST SUITE: None

这里做一个小记
helm upgrade 更新helm命令格式如下
Usage:  helm upgrade [RELEASE] [CHART] [flags]
RELEASE名称
CHART名称

CHART名称可以根据以下命令获得
$ helm search repo ot-helm | grep redis-cluster
ot-helm/redis-cluster           0.17.0          0.17.0          Provides easy redis setup definitions for Kuber...

5）现在使用更新后的redis的密码查看集群状态，验证我们密码是否更新成功

$ kubectl exec -it redis-cluster-leader-0 -n redis-server -- redis-cli -a 'P@ssw0rd' cluster nodes
可以看到如下输出：密码更新成功！
Warning: Using a password with '-a' or '-u' option on the command line interface may not be safe.
b9dc458eafb1a8e7aff36df09ebad220d3ca528d 10.244.95.220:6379@16379,redis-cluster-follower-1 master - 0 1753168734000 5 connected 5461-10922
1d1e17f99792b1e6087540dd0de433ad385b4aa5 10.244.66.38:6379@16379,redis-cluster-leader-2 slave ae32c2492600c36453725c2e5ce2d5d24e99f68a 0 1753168734000 4 connected
6e7492c5979f60305003a159e6dbcdfec0a74926 10.244.96.158:6379@16379,redis-cluster-follower-0 master - 0 1753168735135 6 connected 0-5460
0b4d5d5b62e5d3cbb4dcf5d668844b5c7d657682 10.244.95.219:6379@16379,redis-cluster-leader-1 slave b9dc458eafb1a8e7aff36df09ebad220d3ca528d 0 1753168734000 5 connected
e988ec0596613ded3f6ac8f241851596f4414814 10.244.96.157:6379@16379,redis-cluster-leader-0 myself,slave 6e7492c5979f60305003a159e6dbcdfec0a74926 0 1753168734000 6 connected
ae32c2492600c36453725c2e5ce2d5d24e99f68a 10.244.66.39:6379@16379,redis-cluster-follower-2 master - 0 1753168734131 4 connected 10923-16383

3.1.3 Redis Cluster配置参数清单

Redis Cluster Helm配置清单如下

Key	Type	Default	Description
TLS.ca	string	`"ca.key"`
TLS.cert	string	`"tls.crt"`
TLS.key	string	`"tls.key"`
TLS.secret.secretName	string	`""`
acl.secret.secretName	string	`""`
env	list	`[]`
externalConfig.data	string	`"tcp-keepalive 400\nslowlog-max-len 158\nstream-node-max-bytes 2048\n"`
externalConfig.enabled	bool	`false`
externalService.enabled	bool	`false`
externalService.port	int	`6379`
externalService.serviceType	string	`"LoadBalancer"`
initContainer.args	list	`[]`
initContainer.command	list	`[]`
initContainer.enabled	bool	`false`
initContainer.env	list	`[]`
initContainer.image	string	`""`
initContainer.imagePullPolicy	string	`"IfNotPresent"`
initContainer.resources	object	`{}`
labels	object	`{}`
podSecurityContext.fsGroup	int	`1000`
podSecurityContext.runAsUser	int	`1000`
priorityClassName	string	`""`
redisCluster.clusterSize	int	`3`
redisCluster.clusterVersion	string	`"v7"`
redisCluster.follower.affinity	string	`nil`
redisCluster.follower.nodeSelector	string	`nil`
redisCluster.follower.pdb.enabled	bool	`false`
redisCluster.follower.pdb.maxUnavailable	int	`1`
redisCluster.follower.pdb.minAvailable	int	`1`
redisCluster.follower.replicas	int	`3`
redisCluster.follower.securityContext	object	`{}`
redisCluster.follower.serviceType	string	`"ClusterIP"`
redisCluster.follower.tolerations	list	`[]`
redisCluster.image	string	`"quay.io/opstree/redis"`
redisCluster.imagePullPolicy	string	`"IfNotPresent"`
redisCluster.imagePullSecrets	object	`{}`
redisCluster.leader.affinity	object	`{}`
redisCluster.leader.nodeSelector	string	`nil`
redisCluster.leader.pdb.enabled	bool	`false`
redisCluster.leader.pdb.maxUnavailable	int	`1`
redisCluster.leader.pdb.minAvailable	int	`1`
redisCluster.leader.replicas	int	`3`
redisCluster.leader.securityContext	object	`{}`
redisCluster.leader.serviceType	string	`"ClusterIP"`
redisCluster.leader.tolerations	list	`[]`
redisCluster.minReadySeconds	int	`0`
redisCluster.name	string	`""`
redisCluster.persistenceEnabled	bool	`true`
redisCluster.recreateStatefulSetOnUpdateInvalid	bool	`false`	Some fields of statefulset are immutable, such as volumeClaimTemplates. When set to true, the operator will delete the statefulset and recreate it. Default is false.
redisCluster.redisSecret.secretKey	string	`""`
redisCluster.redisSecret.secretName	string	`""`
redisCluster.resources	object	`{}`
redisCluster.tag	string	`"v7.0.15"`
redisExporter.enabled	bool	`false`
redisExporter.env	list	`[]`
redisExporter.image	string	`"quay.io/opstree/redis-exporter"`
redisExporter.imagePullPolicy	string	`"IfNotPresent"`
redisExporter.resources	object	`{}`
redisExporter.tag	string	`"v1.44.0"`
serviceAccountName	string	`""`
serviceMonitor.enabled	bool	`false`
serviceMonitor.interval	string	`"30s"`
serviceMonitor.namespace	string	`"monitoring"`
serviceMonitor.scrapeTimeout	string	`"10s"`
sidecars.env	object	`{}`
sidecars.image	string	`""`
sidecars.imagePullPolicy	string	`"IfNotPresent"`
sidecars.name	string	`""`
sidecars.resources.limits.cpu	string	`"100m"`
sidecars.resources.limits.memory	string	`"128Mi"`
sidecars.resources.requests.cpu	string	`"50m"`
sidecars.resources.requests.memory	string	`"64Mi"`
storageSpec.nodeConfVolume	bool	`true`
storageSpec.nodeConfVolumeClaimTemplate.spec.accessModes[0]	string	`"ReadWriteOnce"`
storageSpec.nodeConfVolumeClaimTemplate.spec.resources.requests.storage	string	`"1Gi"`
storageSpec.volumeClaimTemplate.spec.accessModes[0]	string	`"ReadWriteOnce"`
storageSpec.volumeClaimTemplate.spec.resources.requests.storage	string	`"1Gi"`

3.3 Redis Replication

3.3.1 Redis Replication部署

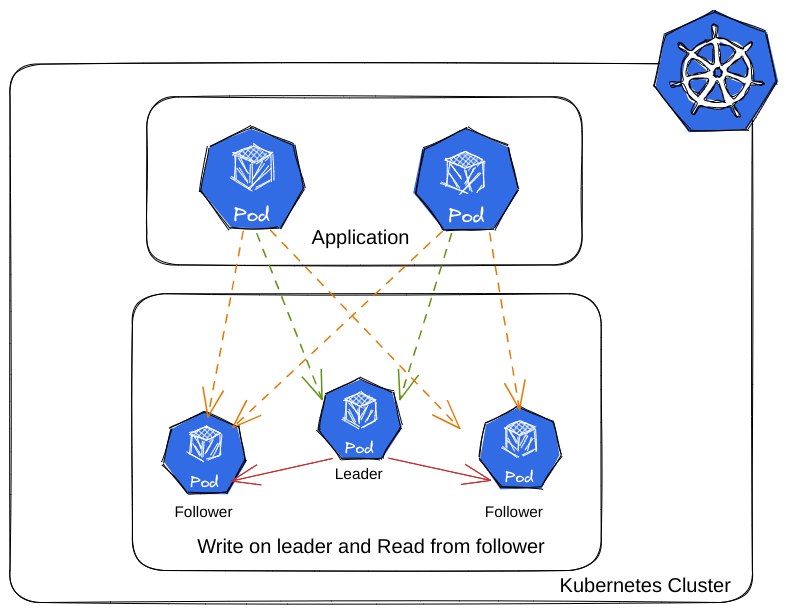

Redis Replication 是将数据从一个 Redis 主节点（leader node）同步到一个或多个从节点（follower node）的过程。

在 Redis Replication 中，主节点负责接收写请求，并将数据变更同步到一个或多个从节点。从节点从主节点接收数据变更并在本地应用，从而形成主节点数据集的副本。

Redis Replication采用异步复制方式，这意味着主节点在发送新更新时，不会等待从节点完成变更应用。相反，从节点会根据可用的网络带宽和硬件性能，尽快与主节点同步数据。

在这里插入图片描述

使用Helm部署

$ helm install redis-replication ot-helm/redis-replication \
  --set redisreplication.clusterSize=3 --namespace ot-operators
...
NAME: redis-replication
LAST DEPLOYED: Tue Mar 21 22:47:44 2023
NAMESPACE: ot-operators
STATUS: deployed
REVISION: 1
TEST SUITE: None

通过检查 pod 的状态来验证Redis Replication

root@k8s-master01:~/redis# kubectl get all -n redis-server
NAME                      READY   STATUS    RESTARTS   AGE
pod/redis-replication-0   1/1     Running   0          26s
pod/redis-replication-1   1/1     Running   0          23s
pod/redis-replication-2   1/1     Running   0          20s

NAME                                   TYPE        CLUSTER-IP      EXTERNAL-IP   PORT(S)    AGE
service/redis-replication              ClusterIP   10.244.4.100    <none>        6379/TCP   26s
service/redis-replication-additional   ClusterIP   10.244.18.241   <none>        6379/TCP   26s
service/redis-replication-headless     ClusterIP   None            <none>        6379/TCP   26s
service/redis-replication-master       ClusterIP   10.244.53.248   <none>        6379/TCP   26s
service/redis-replication-replica      ClusterIP   10.244.2.65     <none>        6379/TCP   26s

NAME                                 READY   AGE
statefulset.apps/redis-replication   3/3     26s

3.3.2 Redis Replication配置参数清单

配置参数清单如下

Key	Type	Default	Description
TLS.ca	string	`"ca.key"`
TLS.cert	string	`"tls.crt"`
TLS.key	string	`"tls.key"`
TLS.secret.secretName	string	`""`
affinity	object	`{}`
env	list	`[]`
externalConfig.data	string	`"tcp-keepalive 400\nslowlog-max-len 158\nstream-node-max-bytes 2048\n"`
externalConfig.enabled	bool	`false`
externalService.enabled	bool	`false`
externalService.port	int	`26379`
externalService.serviceType	string	`"NodePort"`
initContainer.args	list	`[]`
initContainer.command	list	`[]`
initContainer.enabled	bool	`false`
initContainer.env	list	`[]`
initContainer.image	string	`""`
initContainer.imagePullPolicy	string	`"IfNotPresent"`
initContainer.resources	object	`{}`
labels	object	`{}`
livenessProbe.failureThreshold	int	`3`
livenessProbe.initialDelaySeconds	int	`1`
livenessProbe.periodSeconds	int	`10`
livenessProbe.successThreshold	int	`1`
livenessProbe.timeoutSeconds	int	`1`
nodeSelector	object	`{}`
pdb.enabled	bool	`false`
pdb.maxUnavailable	string	`nil`
pdb.minAvailable	int	`1`
podSecurityContext.fsGroup	int	`1000`
podSecurityContext.runAsUser	int	`1000`
priorityClassName	string	`""`
readinessProbe.failureThreshold	int	`3`
readinessProbe.initialDelaySeconds	int	`1`
readinessProbe.periodSeconds	int	`10`
readinessProbe.successThreshold	int	`1`
readinessProbe.timeoutSeconds	int	`1`
redisExporter.enabled	bool	`false`
redisExporter.env	list	`[]`
redisExporter.image	string	`"quay.io/opstree/redis-exporter"`
redisExporter.imagePullPolicy	string	`"IfNotPresent"`
redisExporter.resources	object	`{}`
redisExporter.tag	string	`"v1.44.0"`
redisSentinel.clusterSize	int	`3`
redisSentinel.ignoreAnnotations	list	`[]`
redisSentinel.image	string	`"quay.io/opstree/redis-sentinel"`
redisSentinel.imagePullPolicy	string	`"IfNotPresent"`
redisSentinel.imagePullSecrets	list	`[]`
redisSentinel.minReadySeconds	int	`0`
redisSentinel.name	string	`""`
redisSentinel.recreateStatefulSetOnUpdateInvalid	bool	`false`	Some fields of statefulset are immutable, such as volumeClaimTemplates. When set to true, the operator will delete the statefulset and recreate it. Default is false.
redisSentinel.redisSecret.secretKey	string	`""`
redisSentinel.redisSecret.secretName	string	`""`
redisSentinel.resources	object	`{}`
redisSentinel.serviceType	string	`"ClusterIP"`
redisSentinel.tag	string	`"v7.0.15"`
redisSentinelConfig.downAfterMilliseconds	string	`""`
redisSentinelConfig.failoverTimeout	string	`""`
redisSentinelConfig.masterGroupName	string	`""`
redisSentinelConfig.parallelSyncs	string	`""`
redisSentinelConfig.quorum	string	`""`
redisSentinelConfig.redisPort	string	`""`
redisSentinelConfig.redisReplicationName	string	`"redis-replication"`
redisSentinelConfig.redisReplicationPassword.secretKey	string	`""`
redisSentinelConfig.redisReplicationPassword.secretName	string	`""`
redisSentinelConfig.resolveHostnames	string	`"no"`
redisSentinelConfig.announceHostnames	string	`"no"`
securityContext	object	`{}`
serviceAccountName	string	`""`
serviceMonitor.enabled	bool	`false`
serviceMonitor.interval	string	`"30s"`
serviceMonitor.namespace	string	`"monitoring"`
serviceMonitor.scrapeTimeout	string	`"10s"`
sidecars.env	list	`[]`
sidecars.image	string	`""`
sidecars.imagePullPolicy	string	`"IfNotPresent"`
sidecars.name	string	`""`
sidecars.resources.limits.cpu	string	`"100m"`
sidecars.resources.limits.memory	string	`"128Mi"`
sidecars.resources.requests.cpu	string	`"50m"`
sidecars.resources.requests.memory	string	`"64Mi"`
tolerations	list	`[]`

3.4 Redis Sentinel

3.4.1 概述

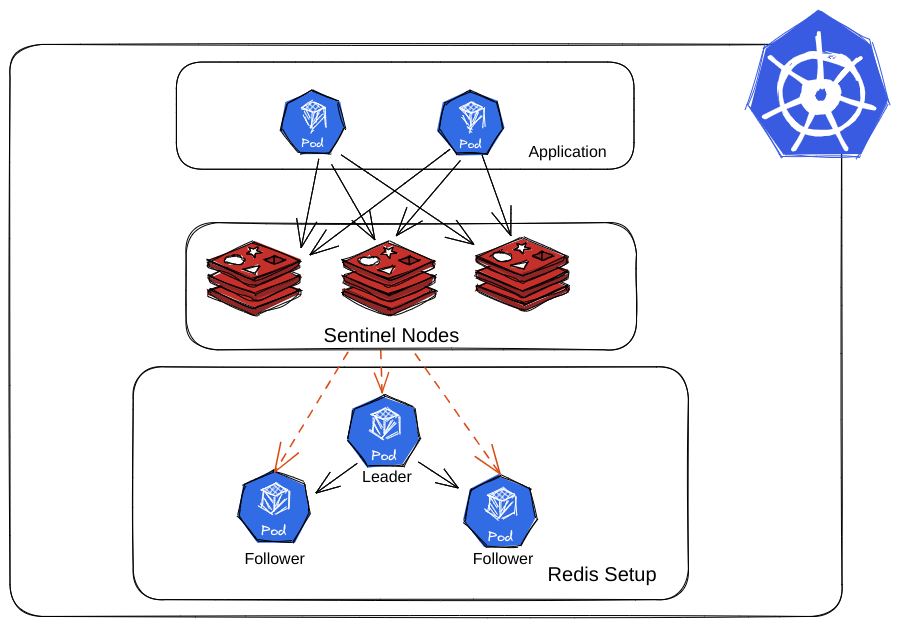

Redis Sentinel 是 Redis 的高可用组件，主要功能包括：

自动故障转移：当主节点出现故障时，Sentinel 能自动选出新的主节点；
节点监控：持续检查 Redis 主/从节点是否健康；
通知功能：在故障发生或切换时发送通知；
配置管理：更新集群配置信息，让从节点连接新主节点。

Sentinel 本质上是一个运行独立进程的监控系统，它之间会相互通信，并与 Redis 节点互动，以实现高可用。

在这里插入图片描述

3.4.2 部署

1) 使用Helm部署

使用helm部署

$ helm install redis-sentinel ot-helm/redis-sentinel \
  --set redissentinel.clusterSize=3  --namespace ot-operators \
  --set redisSentinelConfig.redisReplicationName="redis-replication"
...
NAME: redis-sentinel
LAST DEPLOYED: Tue Mar 21 23:11:57 2023
NAMESPACE: ot-operators
STATUS: deployed
REVISION: 1
TEST SUITE: None

参数解释

{"level":"error","ts":"2025-07-28T03:55:46Z","msg":"","controller":"redissentinel","controllerGroup":"redis.redis.opstreelabs.in","controllerKind":"RedisSentinel","RedisSentinel":{"name":"redis-sentinel","namespace":"juicefs"},"namespace":"juicefs","name":"redis-sentinel","reconcileID":"81a58023-46ae-4084-8aeb-088ffdc088ee","error":"no real master pod found","stacktrace":"github.com/OT-CONTAINER-KIT/redis-operator/internal/k8sutils.getRedisReplicationMasterPod\n\t/workspace/internal/k8sutils/redis-sentinel.go:363\ngithub.com/OT-CONTAINER-KIT/redis-operator/internal/k8sutils.getRedisReplicationMasterIP\n\t/workspace/internal/k8sutils/redis-sentinel.go:374\ngithub.com/OT-CONTAINER-KIT/redis-operator/internal/k8sutils.IsRedisReplicationReady\n\t/workspace/internal/k8sutils/redis-replication.go:242\ngithub.com/OT-CONTAINER-KIT/redis-operator/internal/controller/redissentinel.(*RedisSentinelReconciler).reconcileReplication\n\t/workspace/internal/controller/redissentinel/redissentinel_controller.go:93\ngithub.com/OT-CONTAINER-KIT/redis-operator/internal/controller/redissentinel.(*RedisSentinelReconciler).Reconcile\n\t/workspace/internal/controller/redissentinel/redissentinel_controller.go:60\nsigs.k8s.io/controller-runtime/pkg/internal/controller.(*Controller).Reconcile\n\t/go/pkg/mod/sigs.k8s.io/controller-runtime@v0.17.2/pkg/internal/controller/controller.go:119\nsigs.k8s.io/controller-runtime/pkg/internal/controller.(*Controller).reconcileHandler\n\t/go/pkg/mod/sigs.k8s.io/controller-runtime@v0.17.2/pkg/internal/controller/controller.go:316\nsigs.k8s.io/controller-runtime/pkg/internal/controller.(*Controller).processNextWorkItem\n\t/go/pkg/mod/sigs.k8s.io/controller-runtime@v0.17.2/pkg/internal/controller/controller.go:266\nsigs.k8s.io/controller-runtime/pkg/internal/controller.(*Controller).Start.func2.2\n\t/go/pkg/mod/sigs.k8s.io/controller-runtime@v0.17.2/pkg/internal/controller/controller.go:227"}

redis-sentinel：发布名称
clusterSize=3：部署 3 个 sentinel 实例，形成一个可选举的仲裁集群
redisSentinelConfig.redisReplicationName="redis-replication"：这是一个关键参数，必须是已存在的 RedisReplication 资源名称，Sentinel 用来监控它

查看Pod状态

$ kubectl get pod -n ot-operators
NAME                        READY   STATUS    RESTARTS   AGE
redis-replication-0         1/1     Running   0          107s
redis-replication-1         1/1     Running   0          105s
redis-replication-2         1/1     Running   0          101s
redis-sentinel-sentinel-0   1/1     Running   0          67s
redis-sentinel-sentinel-1   1/1     Running   0          59s
redis-sentinel-sentinel-2   1/1     Running   0          51s

查看service状态

root@k8s-master01:~/redis# kubectl get svc -n redis-server
NAME                                 TYPE        CLUSTER-IP      EXTERNAL-IP   PORT(S)     AGE
redis-replication                    ClusterIP   10.244.45.240   <none>        6379/TCP    113s
redis-replication-additional         ClusterIP   10.244.7.159    <none>        6379/TCP    113s
redis-replication-headless           ClusterIP   None            <none>        6379/TCP    113s
redis-replication-master             ClusterIP   10.244.51.62    <none>        6379/TCP    113s
redis-replication-replica            ClusterIP   10.244.9.249    <none>        6379/TCP    113s
redis-sentinel-sentinel              ClusterIP   10.244.6.134    <none>        26379/TCP   44s
redis-sentinel-sentinel-additional   ClusterIP   10.244.12.179   <none>        26379/TCP   43s
redis-sentinel-sentinel-headless     ClusterIP   None            <none>        26379/TCP   44s

注意事项：

客户端通过 Sentinel 获取当前主节点 IP 和端口，所以客户端连接sentinel节点的地址
主节点故障时，Sentinel 会自动选出新主节点，客户端通过 Sentinel 能及时获取最新的主节点信息；

2) 使用YAML部署

以下是一个最基本的 Redis Sentinel YAML 配置示例：

apiVersion: redis.redis.opstreelabs.in/v1beta2
kind: RedisSentinel
metadata:
  name: redis-sentinel
spec:
  clusterSize: 3
  podSecurityContext:
    runAsUser: 1000
    fsGroup: 1000
  redisSentinelConfig:
    redisReplicationName: redis-replication  # 必须是已存在的 RedisReplication 名称
  kubernetesConfig:
    image: quay.io/opstree/redis-sentinel:v7.0.15
    imagePullPolicy: IfNotPresent
    resources:
      requests:
        cpu: 101m
        memory: 128Mi
      limits:
        cpu: 101m
        memory: 128Mi

应用 YAML 文件：

kubectl apply -f sentinel.yaml

重要说明：

redisReplicationName 字段必须与已有的 RedisReplication 资源名称一致；
RedisSentinel 是用来监控由 RedisReplication 创建的 Redis 主从节点；
所以在部署 Sentinel 之前，必须先部署 RedisReplication 资源。

3.4.3 验证

前提条件：配置好redis-replication和redis-sentinel的密码

在本机安装redis-cli客户端连接测试，发现可以正常连接进sentinel节点
root@k8s-master01:~/redis# redis-cli -h 10.244.6.134 -p 26379 -a P@ssw0rd
Warning: Using a password with '-a' or '-u' option on the command line interface may not be safe.
10.244.6.134:26379>

查看节点状态可以发现，1主节点，2个从节点，3个哨兵节点
10.244.6.134:26379> INFO Sentinel
# Sentinel
sentinel_masters:1
sentinel_tilt:0
sentinel_tilt_since_seconds:-1
sentinel_running_scripts:0
sentinel_scripts_queue_length:0
sentinel_simulate_failure_flags:0
master0:name=myMaster,status=ok,address=10.244.95.228:6379,slaves=2,sentinels=3



常用命令
SENTINEL masters   # 查看所有被监控的主节点信息
SENTINEL get-master-addr-by-name <master-name>  # 获取主节点地址
SENTINEL slaves <master-name>  # 查看某个主节点的从节点列表
INFO Sentinel      # 查看sentinel自身状态

3.5 Redis 故障模拟测试

本次使用 redis replication和redisSentinel模式测试,模拟主节点宕机，会不会自动把从节点切换成主节点，并且流量导向也到新主节点

准备redis主从＋哨兵环境如下
root@k8s-master01:~# kubectl get pod,svc -n juicefs | grep redis
pod/redis-operator-865fcc9887-smj5b   1/1     Running   0          45m
pod/redis-replication-0               1/1     Running   0          25m
pod/redis-replication-1               1/1     Running   0          25m
pod/redis-replication-2               1/1     Running   0          25m
pod/redis-sentinel-sentinel-0         1/1     Running   0          2m29s
pod/redis-sentinel-sentinel-1         1/1     Running   0          2m27s
pod/redis-sentinel-sentinel-2         1/1     Running   0          2m26s
service/redis-replication                    ClusterIP   10.244.18.194   <none>        6379/TCP         44m
service/redis-replication-additional         ClusterIP   10.244.11.114   <none>        6379/TCP         44m
service/redis-replication-headless           ClusterIP   None            <none>        6379/TCP         44m
service/redis-replication-master             ClusterIP   10.244.16.33    <none>        6379/TCP         44m
service/redis-replication-replica            ClusterIP   10.244.9.234    <none>        6379/TCP         44m
service/redis-sentinel-sentinel              ClusterIP   10.244.16.240   <none>        26379/TCP        2m24s
service/redis-sentinel-sentinel-additional   ClusterIP   10.244.1.80     <none>        26379/TCP        2m24s
service/redis-sentinel-sentinel-headless     ClusterIP   None            <none>        26379/TCP        2m25s

其中：redis-replication-master svc指向的是redis主从中的主节点

查看其配置文件可以发现，其指向的是 redis-role: master 标签
root@k8s-master01:~# kubectl get svc -n juicefs redis-replication-master -o yaml
...
spec:
  selector:
    app: redis-replication
    app.kubernetes.io/component: middleware
    app.kubernetes.io/instance: redis-replication
    app.kubernetes.io/managed-by: Helm
    app.kubernetes.io/name: redis-replication
    app.kubernetes.io/version: 0.16.7
    helm.sh/chart: redis-replication-0.16.7
    redis-role: master
    redis_setup_type: replication
    role: replication
  sessionAffinity: None
  type: ClusterIP
....

测试

现在可知 redis-replication-0是主节点
root@k8s-master01:~# kubectl get pod -n juicefs  --show-labels | grep master
redis-replication-0               1/1     Running   0          29m     app.kubernetes.io/component=middleware,app.kubernetes.io/instance=redis-replication,app.kubernetes.io/managed-by=Helm,app.kubernetes.io/name=redis-replication,app.kubernetes.io/version=0.16.7,app=redis-replication,apps.kubernetes.io/pod-index=0,controller-revision-hash=redis-replication-5487f6cd66,helm.sh/chart=redis-replication-0.16.7,redis-role=master,redis_setup_type=replication,role=replication,statefulset.kubernetes.io/pod-name=redis-replication-0

现在我们干掉 redis-replication-0,我直接把他所在的节点干掉
root@k8s-node-01:~# init 0

四、监控

4.1 Redis Exporter

在redis operator中内置了Redis Exporter，以 Prometheus 格式导出 redis 设置的指标。

监控架构如下图所示

在这里插入图片描述

对于使用Helm部署的 Redis资源，只需要修改values.yaml的如下参数即可开启Redis Exporter

redisExporter:
  enabled: true
  image: quay.io/opstree/redis-exporter:1.0
  imagePullPolicy: Always

  或
redisExporter:
  enabled: true
  image: quay.io/opstree/redis-exporter
  imagePullPolicy: IfNotPresent
  tag: v1.44.0

然后更新redis

root@k8s-master01:~/redis# helm upgrade -n redis-server redis-replication ot-helm/redis-replication -f values.yaml
Release "redis-replication" has been upgraded. Happy Helming!
NAME: redis-replication
LAST DEPLOYED: Tue Jul 22 17:10:48 2025
NAMESPACE: redis-server
STATUS: deployed
REVISION: 2
TEST SUITE: None

查看redis exporter部署详情

查看发现，Pod数量变成了2，因为redis-exporter是以sidecar的形式跑pod里面
root@k8s-master01:~/redis# kubectl get pod -n redis-server
NAME                  READY   STATUS    RESTARTS   AGE
redis-replication-0   2/2     Running   0          9m21s
redis-replication-1   2/2     Running   0          9m29s
redis-replication-2   2/2     Running   0          9m37s

查看pod详情
root@k8s-master01:~/redis# kubectl get pod -n redis-server redis-replication-0 -o yaml
...
status:
  containerStatuses:
  - containerID: containerd://bf31f0fddf0a0b3d43efd6f5fae1c86821d1412d23323c724ebf4e10cb0d4527
    image: quay.io/opstree/redis-exporter:v1.44.0
    imageID: quay.io/opstree/redis-exporter@sha256:a63d2b6e946f8b82467ec5f853c24ab994b7cab5eacc3c3cbaa50e49bd27f235
    lastState: {}
    name: redis-exporter
    ready: true
    restartCount: 0
    started: true
    state:
      running:
        startedAt: "2025-07-22T09:11:12Z"
    volumeMounts:
    - mountPath: /var/run/secrets/kubernetes.io/serviceaccount
      name: kube-api-access-ps47p
      readOnly: true
      recursiveReadOnly: Disabled
...


查看svc详情,可以发现也多映射了一个端口，这个9121就是我们要采集的指标端口
root@k8s-master01:~/redis# kubectl get svc -n redis-server redis-replication -o yaml
...
spec:
  ports:
  ...
  - name: redis-exporter
    port: 9121
    protocol: TCP
    targetPort: 9121
  ...

这样就可以配置Prometheus去采集指标了

4.2 ServiceMonitor

配置完Redis Exporter之后，在redis operator中还支持配置serviceMonitor，他会自动创建一个serviceMonitor资源，如果环境中有prometheus-oprator会很方便的就采集到指标

修改values.yaml文件
serviceMonitor:
  enabled: true  # 修改为true
  extraLabels: {}
  interval: 30s
  namespace: monitoring
  scrapeTimeout: 10s

更新redis

root@k8s-master01:~/redis# helm upgrade -n redis-server redis-replication ot-helm/redis-replication --install -f values.yaml
Release "redis-replication" has been upgraded. Happy Helming!
NAME: redis-replication
LAST DEPLOYED: Tue Jul 22 17:53:35 2025
NAMESPACE: redis-server
STATUS: deployed
REVISION: 4
TEST SUITE: None

查看operator创建的serviceMonitor

root@k8s-master01:~/redis# kubectl get serviceMonitor -n redis-server
NAME                                      AGE
redis-replication-prometheus-monitoring   22s
root@k8s-master01:~/redis# kubectl get serviceMonitor -n redis-server -o yaml
apiVersion: v1
items:
- apiVersion: monitoring.coreos.com/v1
  kind: ServiceMonitor
  metadata:
    annotations:
      meta.helm.sh/release-name: redis-replication
      meta.helm.sh/release-namespace: redis-server
    creationTimestamp: "2025-07-22T09:53:36Z"
    generation: 1
    labels:
      app.kubernetes.io/component: middleware
      app.kubernetes.io/instance: redis-replication
      app.kubernetes.io/managed-by: Helm
      app.kubernetes.io/name: redis-replication
      app.kubernetes.io/version: 0.16.7
      helm.sh/chart: redis-replication-0.16.7
    name: redis-replication-prometheus-monitoring
    namespace: redis-server
    resourceVersion: "3076926"
    uid: d13aeee2-c748-479b-be9e-79f49b3882fd
  spec:
    endpoints:
    - interval: 30s
      port: redis-exporter
      scrapeTimeout: 10s
    namespaceSelector:
      matchNames:
      - redis-server
    selector:
      matchLabels:
        app: redis-replication
        redis_setup_type: replication
        role: replication
kind: List
metadata:
  resourceVersion: ""
