基于人工神经网络ANN的图像压缩方法。

            % *************************************************
            % ****         BP_Compress/Decompress             ***
            % *************************************************
clc;
clear all;
close all;
%function Codec
    [Image,I,H]=ReadParams ;          % Read Parameters
    %I=16;                      % Number of nerons in Input and output layer
    %H=8;                      % Number of nerons in hidden layer
    Sqrt_H=fix(sqrt(H));        % Input and Output Block size:  Sqrt_H* Sqrt_H
    Sqrt_I=fix(sqrt(I));        % Compressed Block size:  Sqrt_I* Sqrt_I

    Time = clock;        % Start execution clocl
    Image=imread('bar.bmp');
    Image=rgb2gray(Image);

    [M,N]=size(Image);
    No=M*N/I;                           % Number of input blocks

    [v,w,v_b,w_b]=ReadWeights(I,H);     % Return weights of network 64_16_64

    mrg=zeros(M/2,N/2);                 % Compressed image
    Dmrg=zeros(M,N);                    % Decompressed image

    disp('Start compressing/Decompressing ...');
    for u=1:No
        [x]=NextPattern(Image,I,u);     % Read next block of image(x vector) that the block size=64
        x=double(x)/256;                % Normalize to [0,1]

        h_in=(x'*v)'+v_b;               % Input of hidden layer
        h=f1(h_in);                     % Output of hidden layer
        % h is the compressed data

        k=1;
        for i=1:  Sqrt_H
            for j=1: Sqrt_H
                tmp(i,j)=h(k);
                k=k+1;
            end
        end

        mrg=AddPattern(mrg,tmp,M,N,u);

        y_in=w_b+(h'*w)';                  % Input of output layer
        y=f1(y_in);                     % Output of output layer
        % y is decompressed data
        k=1;
        for i=1: Sqrt_I
            for j=1: Sqrt_I
                tmp(i,j)=y(k);
                k=k+1;
            end
        end
        Dmrg=AddPattern(Dmrg,tmp,M,N,u);
        clear tmp;
    end

    disp('Codec completed.');
    Dmrg=Dmrg*256;
    mrg=mrg*256;

    % *************************************************
    % ****             Outputs                      ***
    % *************************************************
   % Compute the PSNR
    a=double(Image)/255;
    b=double(Dmrg)/255;
    Psnr=PSNR(a,b);
    snr=SNR(Image,Dmrg);
    nmse=NMSE(Image,Dmrg);

    a=uint8(Image);
    b=uint8(Dmrg);
    ssim=ssim(a,b);


    % Computing Bit rate
    % BitRate(BlockSize,NoOfBlocks,NoOfHiddenNeroun,NoOfBitsOut,NoOfBitsWeight)
    NoOfBitsOut=8;
    NoOfBitsWeight=8;
    Bitrate=BitRate(I,No,H,NoOfBitsOut,NoOfBitsWeight);

    str=['------------------------------------------'];
    disp(str);
    str=['    + PSNR= ',num2str(Psnr),' dB'];
    disp(str);
    str=['    + SNR= ',num2str(snr),' dB'];
    disp(str);
    str=['    + NMSE= ',num2str(nmse)];
    disp(str);
    str=['    + Bit rate(all)= ',num2str(Bitrate),' bpp'];
    disp(str);
    str=['    + Bit rate(CR)= ',num2str(I/H),' bpp'];
    disp(str);
    str=['    + SSIM= ',num2str(ssim)];
    disp(str);
    disp(' ')

    subplot(1,2,1);
    imshow(Image);
    title('Ori')
    %subplot(1,3,2);
    %imshow(uint8(fix(mrg)));
    %title('Compressed image')
    subplot(1,2,2);
    imshow(uint8(fix(Dmrg)));
    title('BP')

    Ttime= etime(clock,Time);           % All time in Sec.
    Thour=fix(Ttime/3600);
    Tmp=round(rem(Ttime,3600));
    Tmin=fix(Tmp/60);
    Tsec=round(rem(Tmp,60));
            % elapsed time
    str=['    + Time: ',int2str(Thour),':',int2str(Tmin),''':',int2str(Tsec),''''''];
    disp(str);
    str=['------------------------------------------'];
    disp(str);

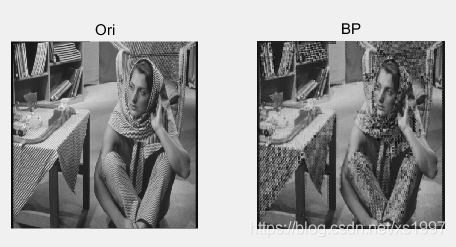

实验结果：
