1.配置docker远程连接端口

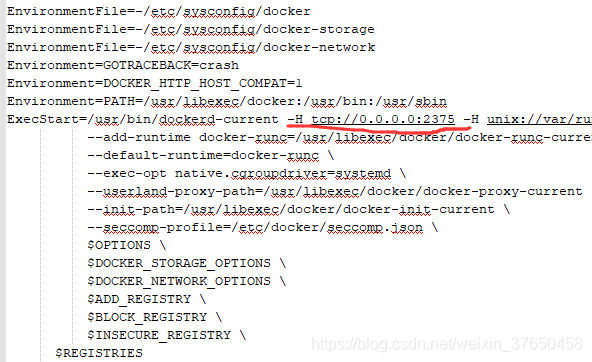

 vi /usr/lib/systemd/system/docker.service

 找到 ExecStart，在最后面添加 -H tcp://0.0.0.0:2375

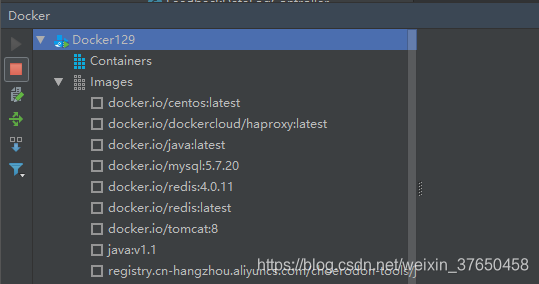

装好docker插件，配置好连接，启动就可以看到docker上的容器和镜像。



如果上面配置没有效，就这样配置

ExecStart=/usr/bin/dockerd -H unix:///var/run/docker.sock -H tcp://0.0.0.0:2375 -H fd:// --containerd=/run/containerd/containerd.sock



2.新建项目

新建一个SpringBoot项目

 pom配置：



<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 https://maven.apache.org/xsd/maven-4.0.0.xsd">
    <modelVersion>4.0.0</modelVersion>
    <parent>
        <groupId>org.springframework.boot</groupId>
        <artifactId>spring-boot-starter-parent</artifactId>
        <version>2.1.7.RELEASE</version>
        <relativePath/> <!-- lookup parent from repository -->
    </parent>
    <groupId>com.wx</groupId>
    <artifactId>automatic-deployment-docker</artifactId>
    <version>0.0.1-SNAPSHOT</version>
    <name>automatic-deployment-docker</name>
    <description>Demo project for Spring Boot</description>

    <properties>
        <project.build.sourceEncoding>UTF-8</project.build.sourceEncoding>
        <project.reporting.outputEncoding>UTF-8</project.reporting.outputEncoding>
        <docker.image.prefix>com.demo</docker.image.prefix>
        <java.version>1.8</java.version>
    </properties>

    <build>
        <plugins>
            <plugin>
                <groupId>org.springframework.boot</groupId>
                <artifactId>spring-boot-maven-plugin</artifactId>
            </plugin>
            <plugin>
                <groupId>com.spotify</groupId>
                <artifactId>docker-maven-plugin</artifactId>
                <version>1.0.0</version>
                <configuration>
                    <dockerDirectory>src/main/docker</dockerDirectory>
                    <resources>
                        <resource>
                            <targetPath>/</targetPath>
                            <directory>${project.build.directory}</directory>
                            <include>${project.build.finalName}.jar</include>
                        </resource>
                    </resources>
                </configuration>
            </plugin>
            <plugin>
                <artifactId>maven-antrun-plugin</artifactId>
                <executions>
                    <execution>
                        <phase>package</phase>
                        <configuration>
                            <tasks>
                                <copy todir="src/main/docker" file="target/${project.artifactId}-${project.version}.${project.packaging}"></copy>
                            </tasks>
                        </configuration>
                        <goals>
                            <goal>run</goal>
                        </goals>
                    </execution>
                </executions>
            </plugin>
            <plugin>
                <groupId>org.apache.maven.plugins</groupId>
                <artifactId>maven-surefire-plugin</artifactId>
                <version>2.5</version>
                <configuration>
                    <skip>true</skip>
                </configuration>
            </plugin>
        </plugins>
    </build>
    <dependencies>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-web</artifactId>
        </dependency>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-test</artifactId>
            <scope>test</scope>
        </dependency>
        <dependency>
            <groupId>log4j</groupId>
            <artifactId>log4j</artifactId>
            <version>1.2.17</version>
        </dependency>
    </dependencies>
</project>

Controller:

@RestController
public class DockerController {
    static Log log = LogFactory.getLog(DockerController.class);

    @RequestMapping("/")
    public String index() {
        log.info("Hello Docker!");
        return "Hello Docker!";
    }
}

 Dockerfile:

FROM registry.cn-hangzhou.aliyuncs.com/choerodon-tools/javabase:0.5.0
ADD *.jar app.jar
ENTRYPOINT ["java","-Djava.security.egd=file:/dev/./urandom","-jar","/app.jar"]

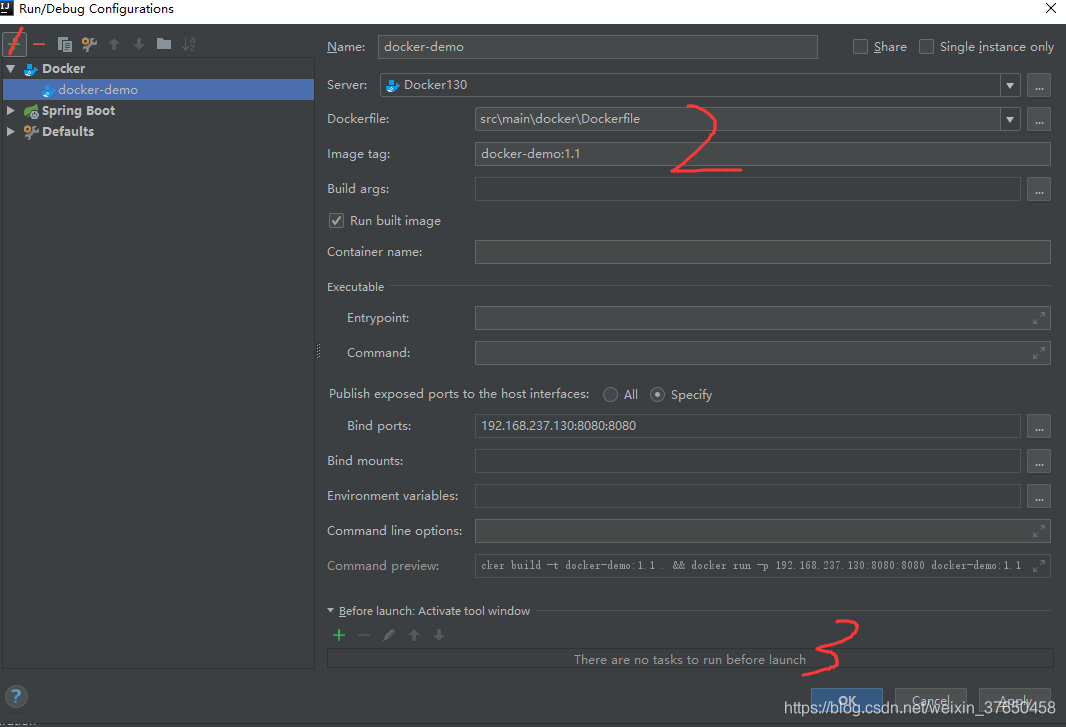

3.新建配置



 启动docker

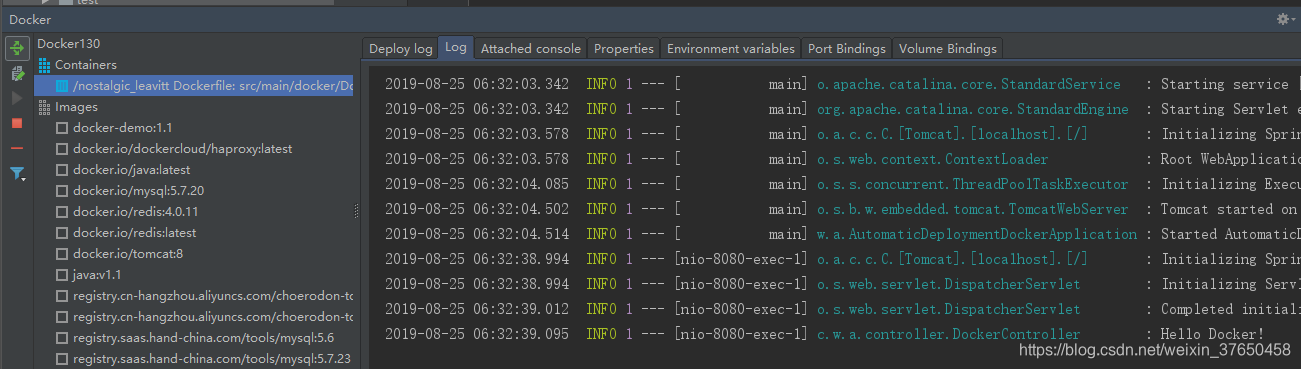

 启动项目：

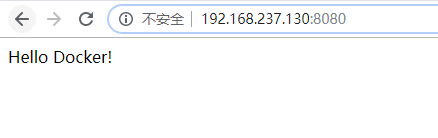

ok 访问成功！

















参考博客：

https://blog.csdn.net/qq_42914528/article/details/100029421
